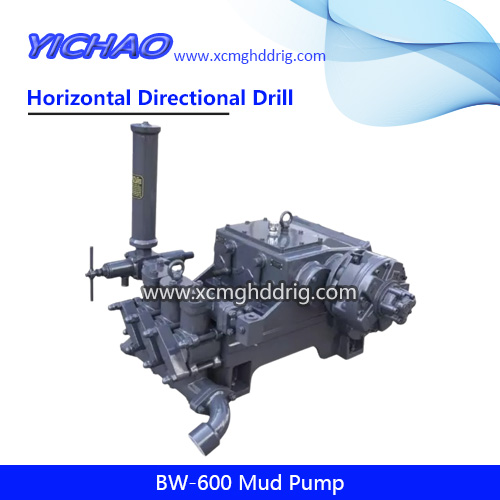

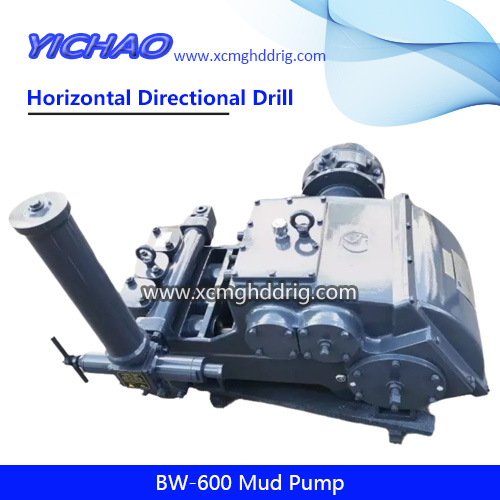

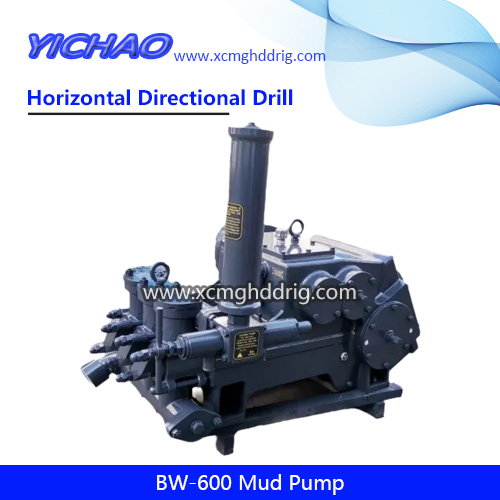

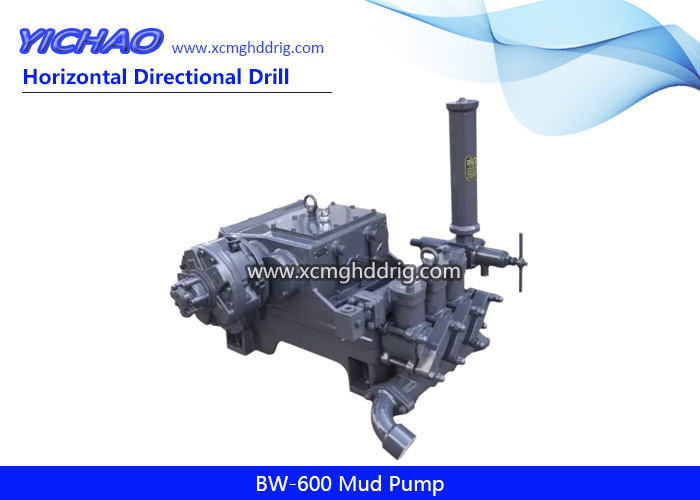

BW-600 mud pumps for drilling rigs is a kind of multi-purpose horizontal triplex reciprocating single-acting piston pump, with four gear shifting and four traffic.
It can not only meet the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling, internal screw drilling, turbine drilling, common core drilling with a hole depth of 2000m or more, and non-excavation drilling rigs about 70 Tonnen. It can also be used for grouting treatment of various soft foundations, well drilling, mountain water delivery, mine drainage, embankment grouting and other purposes.
| Modell | BW-600 |
| Typ | Hydraulic Mud Pump |
| Takt | 110 |
| Cylinder Diameter | 100 |
| Fluss | 195-600 L/min |
| Druck | 3.5-10 MPA |
The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber articles, meanwhile, the temperature can not exceed 50℃.
| Typ | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) | 110 |
| Cyclinder Diameter (mm) | 100 |
| Fluss ( L/min) | 600 415 280 195 |
| Druck (MPA) | 3.5 5 7.5 10 |
| Input Speed (u/min) | 550 |
| Input Power (KW) | 47 |
| Abmessungen (mm) | 1218*976*1026 |
| Gewicht (kg) | 760 |
| Hydraulic Motor Model | 2-250 |
| Hydraulic Motor Pressure (MPA) | 20 |
| Maximum Motor Flow (L/min) | 152 |
