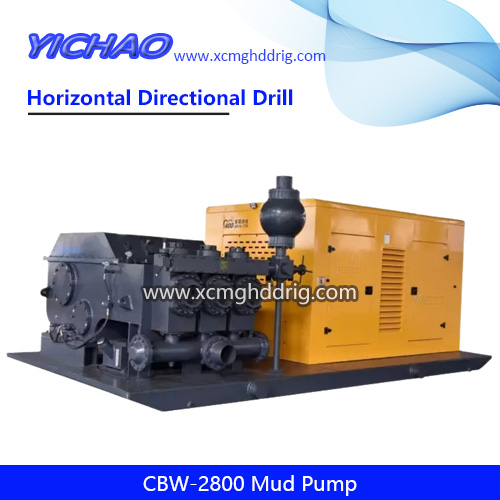

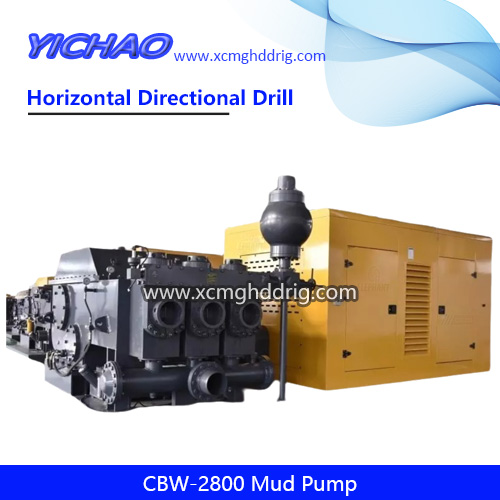

CBW-2800 Mud Pump Diesel Engine for 300ton HDD Drilling Rig

CBW-2800 mud pump with diesel engine unit s a multi-purpose horizontal three-cylinder reciprocating single-acting plunger pump with five-stage flow. It can not only meet the requirements of a variety of new drilling technologies, but also be used for various soft foundation grouting treatment, engineering construction drilling, water well drilling, mountain water supply, mine drainage, dyke grouting and other purposes.
Its main role in drilling process is to supply flushing fluid to the drilling hole to circulate in the drilling hole, so as to carry cuttings back to the ground, keep the bottom of the hole clean, protect the wall of the hole from collapse, and cool and lubricate the drill bit and drilling tool. The flushing fluid used in this pump should not contain chemical impurities that corrode metal and rubber parts, and the temperature should not exceed 50 C. The recommended specific gravity of the slurry is less than 1.6, the viscosity is less than 180S, the sand content is not more than 4%, the maximum diameter of sand particles is not more than 0.5 mm, the pH value is 7-8, and there should be no mud, weeds, leaves, etc.. in the slurry.
CBW-2800 mud pump is suitable for pumping all kinds of viscous and non-viscous liquids (such as clear water, Schlamm, Etc.) which are not corrosive, and can be used for mud pump, operation pump, pipeline pressure test pump, etc..
This kind of mud pump is equipped with wireless remote control system, touch screen remote operation, display screen real-time monitoring.

Funktionen

1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.

Technische Parameter
