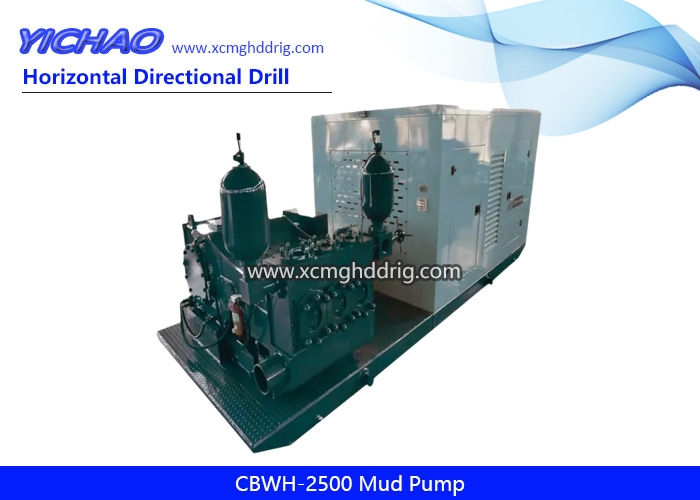

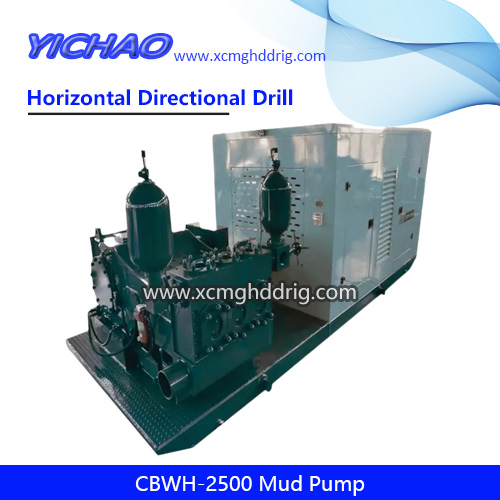

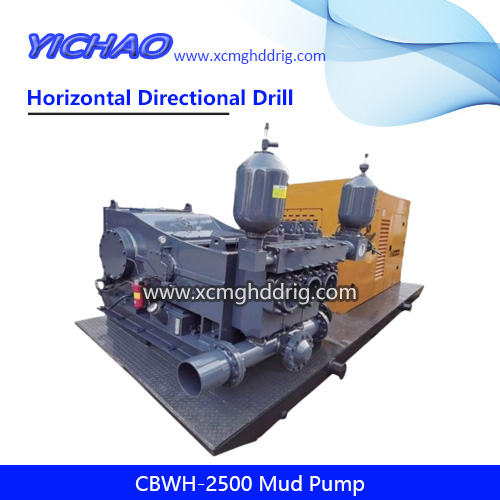

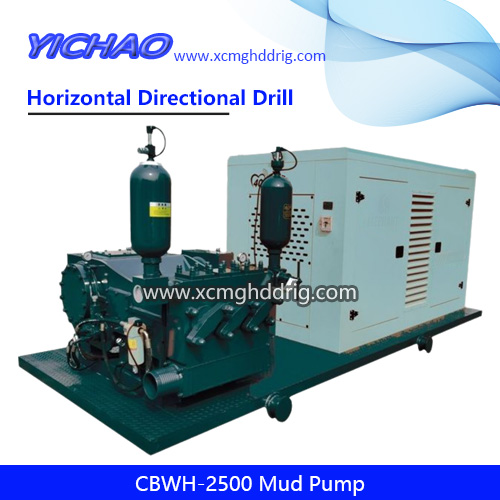

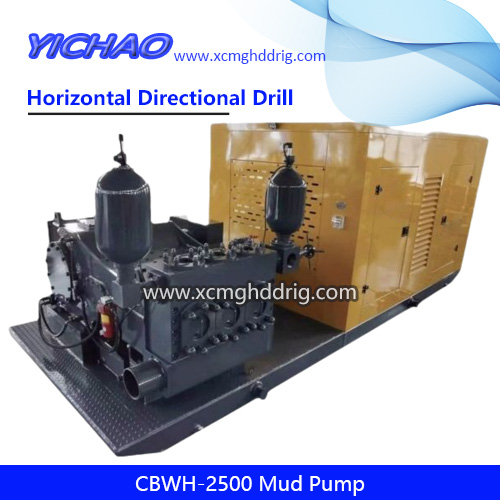

CBWH-2500 drilling diesel engine mud pump is a kind of horizontal triplex reciprocating single-acting plunger pump, equipment with automatic shift gearbox, wireless remote control.
It can be used for the purposes, such as grouting, mine drainage and long-distance water delivery. This plunger mud pump has six kinds of flow and pressure.
This kind of customized mud pump is equipped with wireless remote control system, touch screen remote operation, display screen real-time monitoring.
| Modell : | CBWH-2500 |
| Typ : | Diesel Engine Mud Pump |
| Takt : | 160 |
| Cylinder Diameter : | 190 |
| Fluss : | 734-2500 L/min |
| Druck : | 5-10MPA |
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.
| Typ | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Takt (mm) | 160 |
| Cyclinder Diameter (mm) | 190 |
| Fluss (L/min) | 2500 1809 1346 989 734 |
| Druck (MPA) | 5 6 7 8 10 |
| Nennleistung (kW) | 250 |
| Abmessungen (mm) | 5615*2150*2350 |
| Gewicht (kg) | 9500 |
| Diesel engine Model | QSM11-P476 |
| Leistung des Dieselmotors (KW) | 330 |
| Bewertete Geschwindigkeit (u/min) | 1500 |
