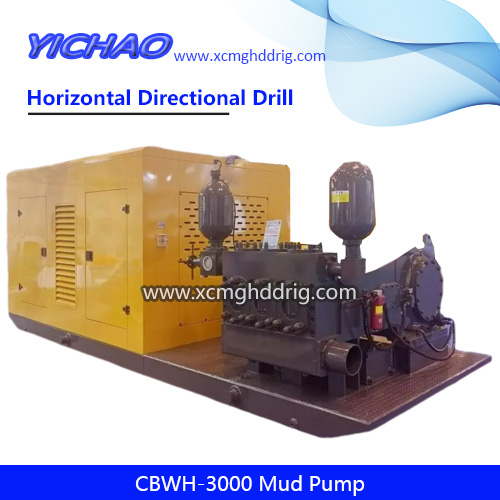

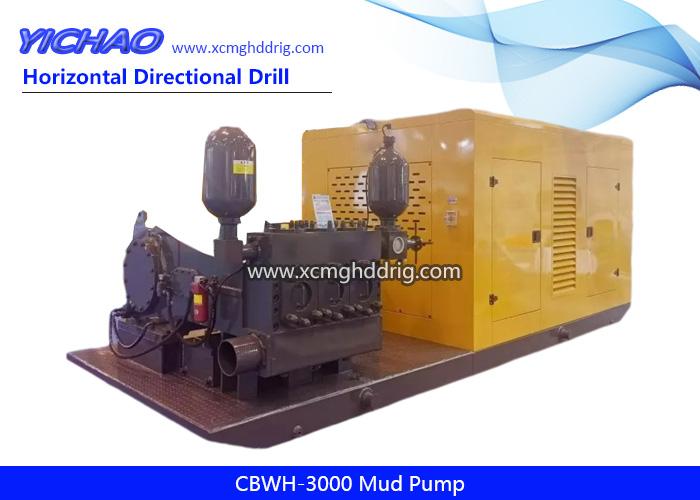

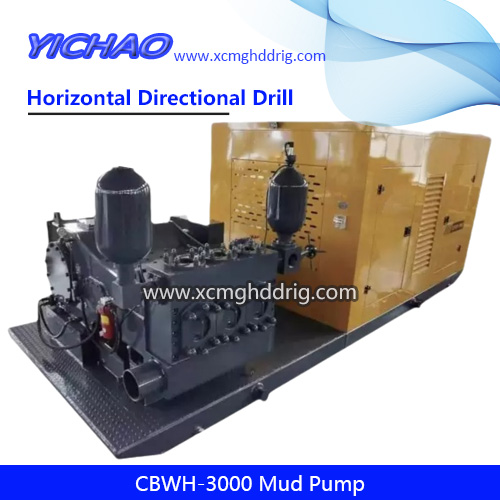

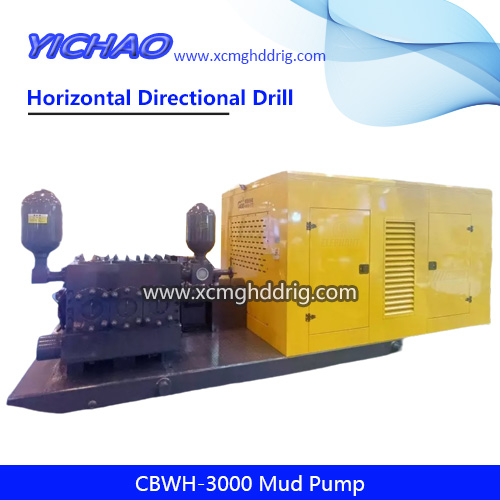

CBWH-3000 Mud diesel engine pump is a kind of horizontal triplex reciprocating single-acting piston pump, angetrieben von Dieselmotor, equipment with automatic shift gearbox, wireless remote control.
It can be used for the purposes, such as grouting, mine drainage and long-distance water delivery. This piston mud pump has five kinds of flow and pressure.
This kind of mud pump is equipped with wireless remote control system, touch screen remote operation, display screen real-time monitoring.
| Modell | CBWH-3000 |
| Typ | Diesel Engine Mud Pump |
| Takt | 175 |
| Cylinder Diameter | 200 |
| Fluss | 818-3000 L/min |
| Druck | 5-10 MPA |
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.
| Typ | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) | 175 |
| Cyclinder Diameter (mm) | 200 |
| Fluss (L/min) | 3000 2452 1818 1340 818 |
| Druck (MPA) | 5 6 8 10 10 |
| Input Speed (u/min) | 320 |
| Abmessungen (mm) | 5980*2390*2450 |
| Gewicht (kg) | 11000 |
| Diesel Model | QSZ13-C550 |
| Leistung des Dieselmotors (KW) | 410 |
| Bewertete Geschwindigkeit (u/min) | 1500 |
