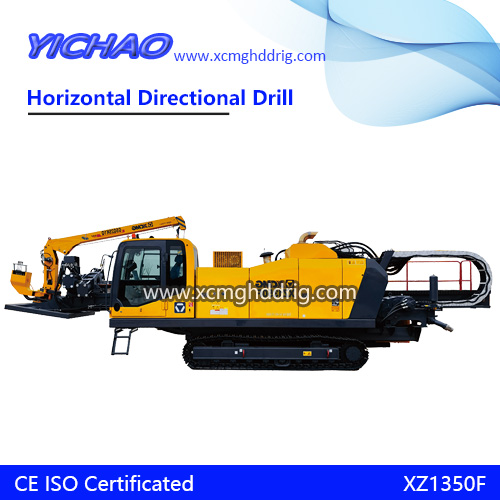

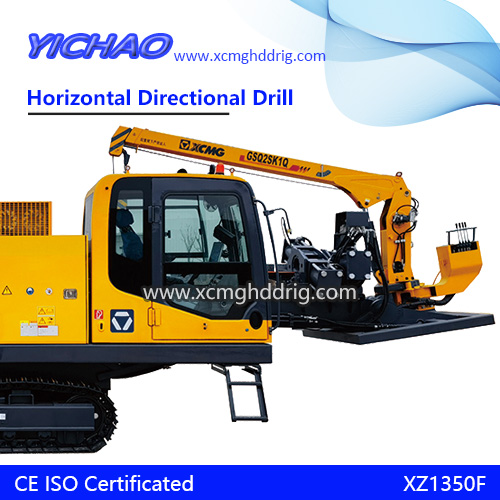

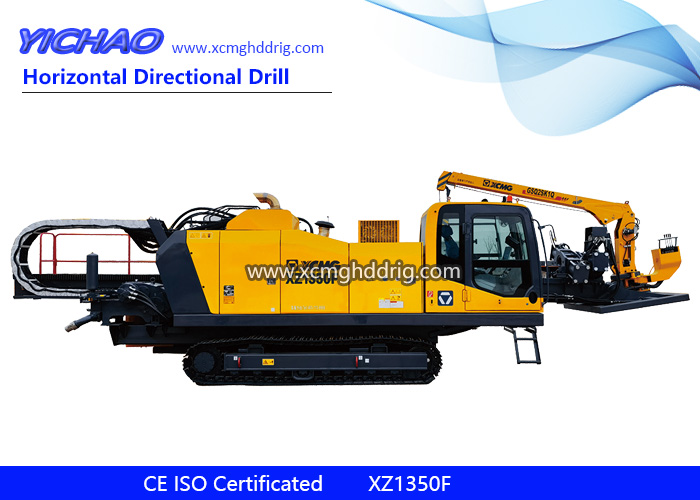

The XZ1350F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company's proprietary technologies, including closed energy-saving circuits, control proporcional electrohidráulico, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. Los componentes principales, including the hydraulic system, sistema de transmisión, reductor de, and electrical control system, are first-class international brand products with high reliability.
The XZ1350F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company’s proprietary technologies, including closed energy-saving circuits, control proporcional electrohidráulico, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. Los componentes principales, including the hydraulic system, sistema de transmisión, reductor de, and electrical control system, are first-class international brand products with high reliability.
System Intelligence: Intelligent electronically controlled drilling rig, sistema de visualización digital, distributed electrical system, simple control, easy troubleshooting;
Comfortable Control: Silent rotating cab + multi-functional integrated double handle, comfortable access rate of control device> 95%;
Energy Efficient: Mud flow in the cab is steplessly adjusted, and the mud pump automatically starts and stops according to the working conditions, ahorro 15% of mud:
One-button operation: Fast construction, one-button operation, convenient, fast and safe;
Cloud Management: Remote cloud data management system, through the drilling cloud mobile phone APP, real-time observation of construction data, winning thousands of miles away.
| Artículo | Unidad | XZ1350F |
| Motor | – | Cummins National IV |
| Potencia nominal | kW/r/min | 264/2100 |
| Maximum push and pull force | kN | 1350 |
| Maximum push and pull speed | m/min | 45 |
| Esfuerzo de torsión | N·m | 48000 |
| Velocidad máxima | r/min | 100 |
| Maximum flow rate | L/min | 800 |
| Presión máxima | MPa | 10 |
| Barra de perforación | mm×m | φ114/φ127×6 |
| Peso de elevación | t | 2 |
| Lifting torque | t•m | 4 |
| Maximum penetration angle | ° | 18 |
| Masa | t | 25 |
| Dimensiones | mm | 11680×2760×3550 |
| Observaciones | – | Opcional: 1. Power booster; 2. 950L/min mud pump; 3. Empuñadura semiautomática. |
