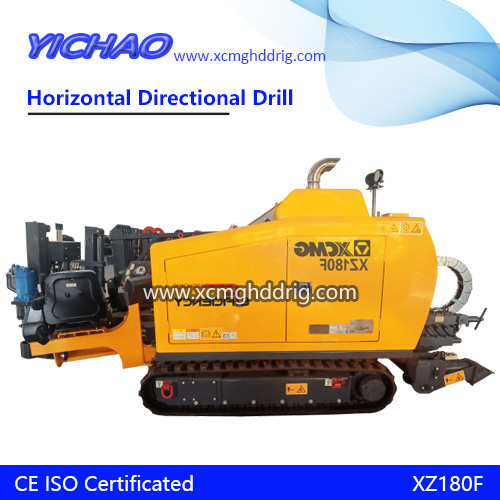

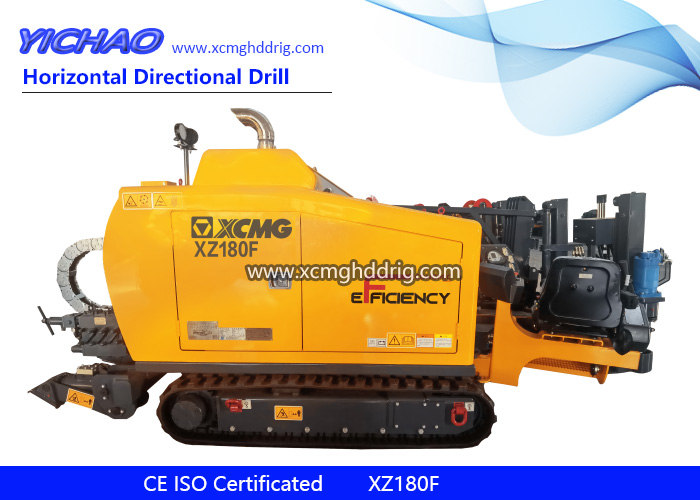

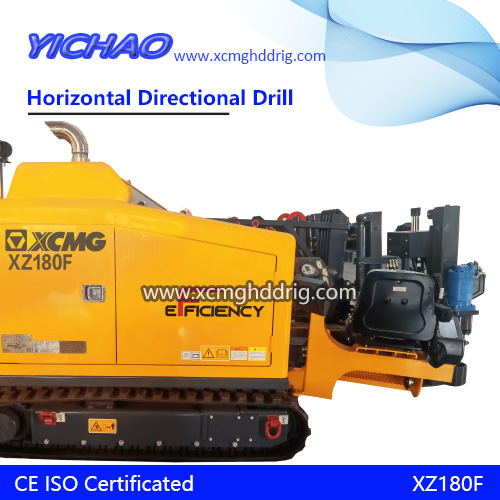

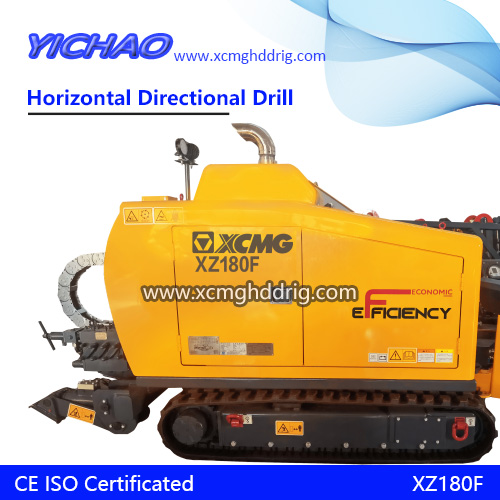

The XZ180F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. It adopts hydraulic pilot control and gear rack push-pull. Its main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, sistema de alimentación, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.
The XZ180F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. It adopts hydraulic pilot control and gear rack push-pull. Its main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, sistema de alimentación, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.
Hydraulic Control Intelligence: The hydraulic control pilot system provides comfortable operating performance and flexible adjustment performance for the whole machine. The first-class brand hydraulic components ensure the reliable operation of the hydraulic system of the whole machine;
Technology Leading: The patented floating technology of the power head can greatly protect the drill pipe thread and increase the service life of the drill pipe;
Reliable Operation: The power head adopts a motor + reducer structure, and through the gear rack structure, the push and pull speed is fast and the operation is reliable;
Construction Efficiency: The high and low speed push and pull rotation system, the plunger variable motor realizes the high and low speed push and pull of the power head, increases the adaptability of the drilling rig to the working conditions, and improves the construction efficiency of the drilling rig;
Customer Customization: Supports diversified customer needs.
| Artículo | Unidad | XZ180F |
| Motor | – | Cummins National IV |
| Potencia nominal | kW/r/min | 93/2200 |
| Maximum push and pull force | kN | 180 |
| Maximum push and pull speed | m/min | 45 |
| Esfuerzo de torsión | N·m | 4500 |
| Velocidad máxima | r/min | 205 |
| Maximum flow rate | L/min | 180 |
| Presión máxima | MPa | 4 |
| Barra de perforación | mm×m | φ60×2 |
| Peso de elevación | t | — |
| Lifting torque | t•m | — |
| Maximum penetration angle | ° | 18 |
| Masa | t | 5.5 |
| Dimensiones | mm | 4200×1800×2200 |
| Observaciones | – | Opcional: 1. Fully automatic gripper; 2. Double anchoring; 3. Anticongelante de barro; 4. Wireless walking; 5. Thread oil application |
