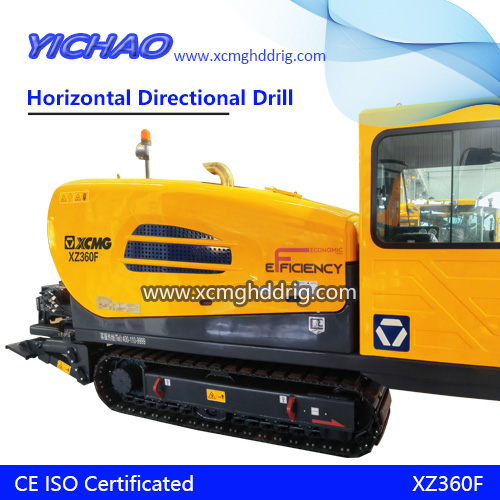

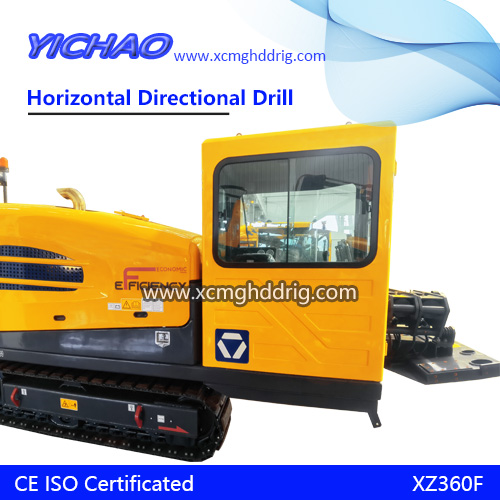

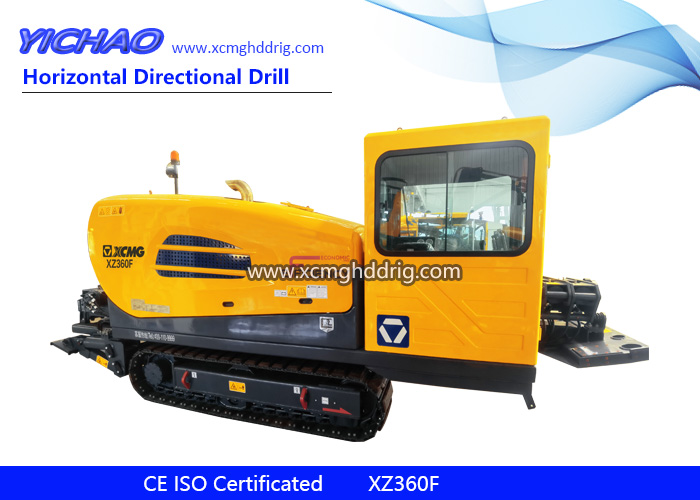

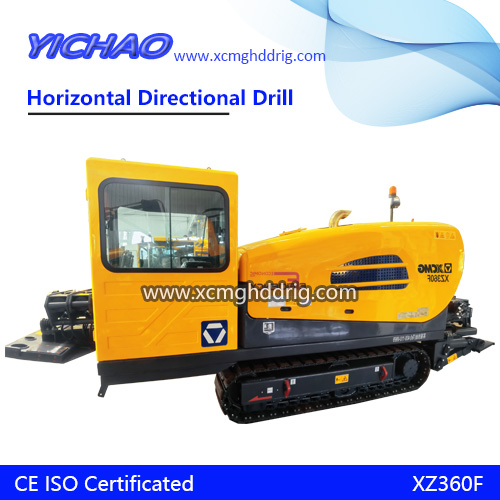

The XZ360F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. The gear rack push-pull, main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, sistema de alimentación, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.
The XZ360F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. The gear rack push-pull, main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, sistema de alimentación, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.
Hydraulic Control Intelligence: Hydraulic control pilot system provides comfortable operation performance and flexible adjustment performance for the whole machine. First-class brand hydraulic components ensure the reliable operation of the whole machine hydraulic system;
Technology Leading: The patented floating technology of the power head can greatly protect the drill pipe thread and increase the service life of the drill pipe;
Reliable Operation: The power head adopts a motor + reducer structure, and through the gear rack structure, the push and pull speed is fast and the operation is reliable;
Construction Efficiency: High and low speed push and pull rotation system, the plunger variable motor realizes high and low speed push and pull of the power head, increases the adaptability of the drilling rig to working conditions, and improves the construction efficiency of the drilling rig;
Customer Customization: Supports diversified customer needs.
| Artículo | Unidad | XZ360F |
| Motor | – | Cummins National IV |
| Potencia nominal | kW/r/min | 154/2200 |
| Maximum push and pull force | kN | 380 |
| Maximum push and pull speed | m/min | 45 |
| Esfuerzo de torsión | N·m | 13200 |
| Velocidad máxima | r/min | 140 |
| Maximum flow rate | L/min | 400 |
| Presión máxima | MPa | 8 |
| Barra de perforación | mm×m | φ73/83×3 |
| Peso de elevación | t | — |
| Lifting torque | t•m | — |
| Maximum penetration angle | ° | 20 |
| Masa | t | 10 |
| Dimensiones | mm | 6200×2280×2450 |
| Observaciones | – | Standard configuration: Simple machine shed. Optional configuration: 1. Semi-automatic; 2. Fully automatic gripper; 3. Double anchoring; 4. CAB; 5. Air conditioning; 6. Anticongelante de barro; 7. Wireless travel; 8. Thread oil application |
