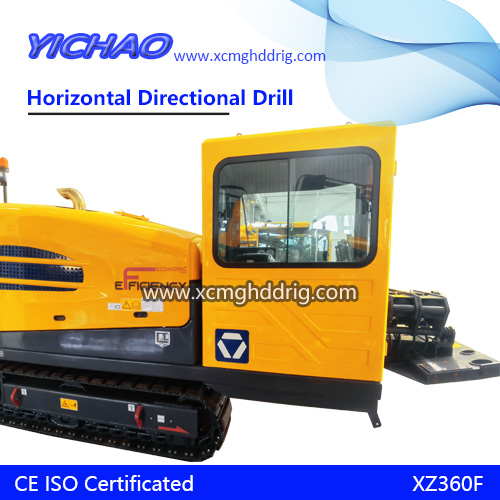

  • XCMG XZ360F HDD Drilling Machine Horizontal Directional Drill Rig Equipment

    The XZ360F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. The gear rack push-pull, main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, power system, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.

    • Description

    The XZ360F horizontal directional drilling rig has a compact structure, excellent performance, and complete functions. The gear rack push-pull, main performance parameters and control technology have reached the international advanced level. The main components such as the hydraulic system, power system, and travel system are all made of first-class domestic and foreign brand products with good performance and reliability.
    XCMG XZ360F HDD Drilling Machine Horizontal Directional Drill Rig Equipment

    Product Introduction

    Hydraulic Control Intelligence: Hydraulic control pilot system provides comfortable operation performance and flexible adjustment performance for the whole machine. First-class brand hydraulic components ensure the reliable operation of the whole machine hydraulic system;
    Technology Leading: The patented floating technology of the power head can greatly protect the drill pipe thread and increase the service life of the drill pipe;
    Reliable Operation: The power head adopts a motor + reducer structure, and through the gear rack structure, the push and pull speed is fast and the operation is reliable;
    Construction Efficiency: High and low speed push and pull rotation system, the plunger variable motor realizes high and low speed push and pull of the power head, increases the adaptability of the drilling rig to working conditions, and improves the construction efficiency of the drilling rig;
    Customer Customization: Supports diversified customer needs.

    Parameter Configuration

    Item Unit XZ360F
    Engine Cummins National IV
    Rated power kW/r/min 154/2200
    Maximum push and pull force kN 380
    Maximum push and pull speed m/min 45
    Torque N·m 13200
    Maximum speed r/min 140
    Maximum flow rate L/min 400
    Maximum pressure MPa 8
    Drill rod mm×m φ73/83×3
    Lifting weight t
    Lifting torque t•m
    Maximum penetration angle ° 20
    Mass t 10
    Dimensions mm 6200×2280×2450
    Remarks Standard configuration: Simple machine shed. Optional configuration: 1. Semi-automatic; 2. Fully automatic gripper; 3. Double anchoring; 4. Cab; 5. Air conditioning; 6. Mud antifreeze; 7. Wireless travel; 8. Thread oil application
    , , , , , , , , , , , , ,
