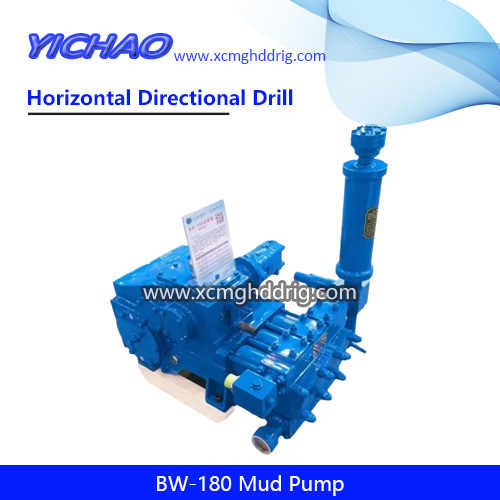

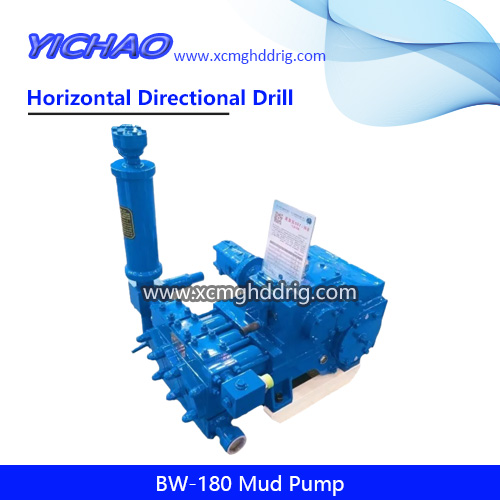

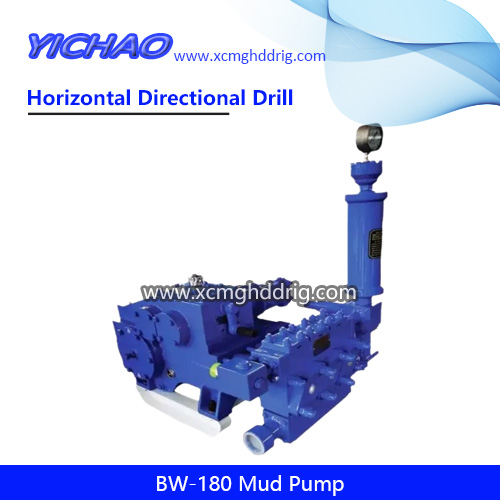

BW-180 drilling mud pump is a horizontal, triplex, single acting reciprocation piston pump, hydraulic motor drive.
| Modell |
BW-180 |
| Typ |
Hydraulic Mud Pump |
| Takt |
60 |
| Cylinder Diameter |
70 |
| Fluss |
71-180 L/min |
| Druck |
3.2-8 MPA |
Technische Parameter
| Typ |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) |
60 |
| Cyclinder Diameter (mm) |
70 |
| Fluss ( L/min) |
180 71 |
| Druck (MPA) |
3.2 8 |
| Input Speed (u/min) |
640 |
| Input Power (KW) |
12 |
| Abmessungen (mm) |
773*628*778 |
| Gewicht (kg) |
252 |
| Hydraulic Motor Model |
2K604-0041 |
| Hydraulic Motor Pressure (MPA) |
17 |
| Maximum Motor Flow (L/min) |
56 |
