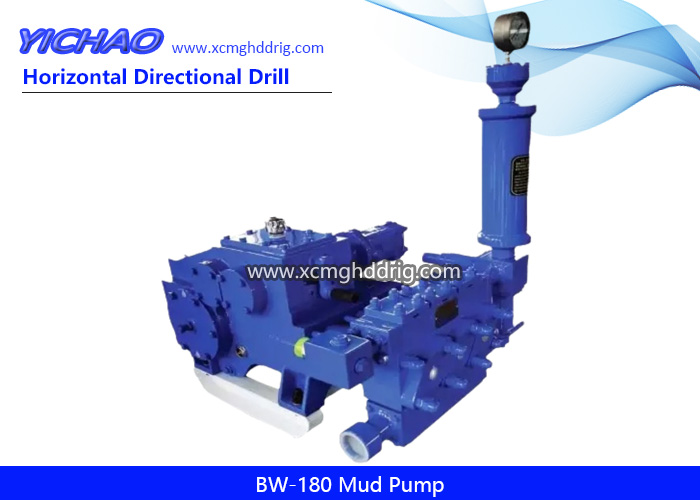

BW-180 drilling mud pump is a horizontal, triplex, single acting reciprocation piston pump, hydraulic motor drive.
| Model |
BW-180 |
| Type |
Hydraulic Mud Pump |
| Stroke |
60 |
| Cylinder Diameter |
70 |
| Flow |
71-180 L/min |
| Pressure |
3.2-8 Mpa |
Technical Parameters
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
60 |
| Cyclinder Diameter (mm) |
70 |
| Flow ( L/min) |
180 71 |
| Pressure (Mpa) |
3.2 8 |
| Input Speed (r/min) |
640 |
| Input Power (KW) |
12 |
| Dimensions (mm) |
773*628*778 |
| Weight (kg) |
252 |
| Hydraulic Motor Model |
2K604-0041 |
| Hydraulic Motor Pressure (Mpa) |
17 |
| Maximum Motor Flow (L/min) |
56 |
