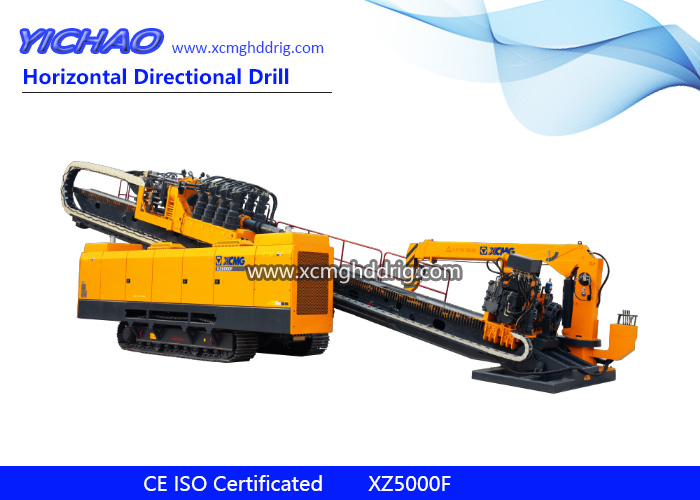

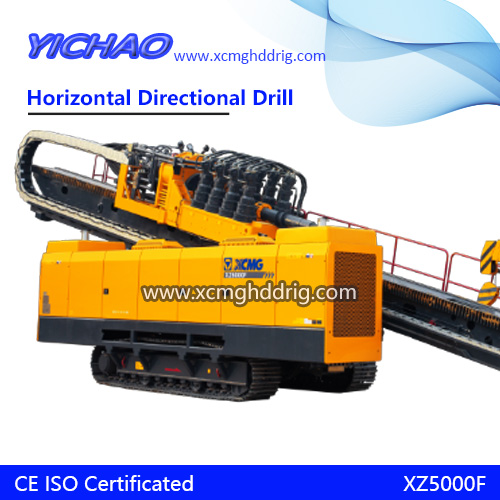

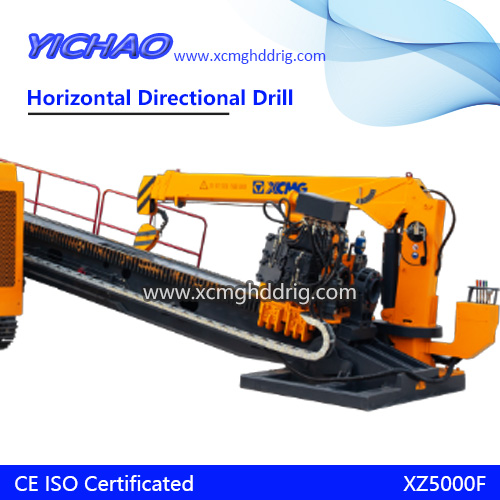

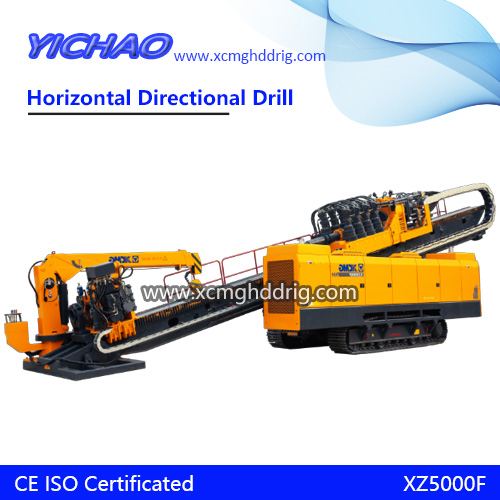

The XZ5000F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company's proprietary technologies, including closed energy-saving circuits, control proporcional electrohidráulico, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. Los componentes principales, including the hydraulic system, sistema de transmisión, reductor de, and electrical control system, are first-class international brand products with high reliability.
The XZ5000F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company’s proprietary technologies, including closed energy-saving circuits, control proporcional electrohidráulico, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. Los componentes principales, including the hydraulic system, sistema de transmisión, reductor de, and electrical control system, are first-class international brand products with high reliability.
System Intelligence: Intelligent electronically controlled drilling rig, sistema de visualización digital, distributed electrical system, simple control, easy troubleshooting;
Comfortable Control: Silent cab + multi-function integrated double handle, comfortable reach rate of control device> 95%;
One-button operation: Quick construction, one-button operation, convenient, fast and safe;
Cloud Management: Remote cloud data management system, through the drilling cloud mobile phone APP, real-time observation of construction data, winning thousands of miles;
Energy saving and high efficiency: Multi-power system, any engine can complete all the actions of the drilling rig when started, combined with the proprietary single-engine high-efficiency construction mode, in the case of guiding or small-diameter construction, one engine can work normally, with low fuel consumption and low cost of use.
| Artículo | Unidad | XZ5000F |
| Motor | – | Cummins National IV |
| Potencia nominal | kW/r/min | 2×294/2100 |
| Maximum push and pull force | kN | 5000 |
| Maximum push and pull speed | m/min | 35 |
| Esfuerzo de torsión | N·m | 160000 |
| Velocidad máxima | r/min | 90 |
| Maximum flow rate | L/min | External |
| Presión máxima | MPa | 10 |
| Barra de perforación | mm×m | φ140/φ168×9.6 |
| Peso de elevación | t | 3.2 |
| Lifting torque | t•m | 6.4 |
| Maximum penetration angle | ° | 16 |
| Masa | t | 53 |
| Dimensiones | mm | 17500×3200×3650 |
| Observaciones | – | Opcional: 1. Split operation room; 2. Rotary semi-automatic. |
