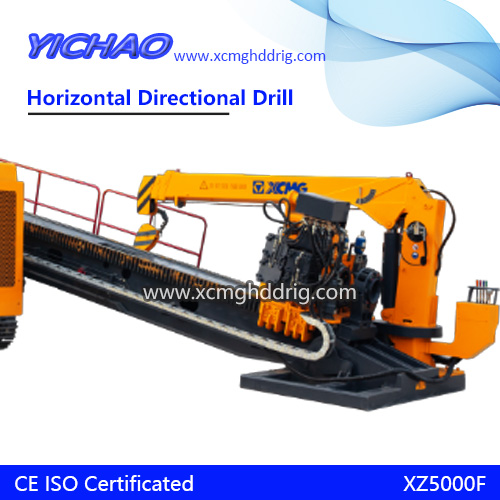

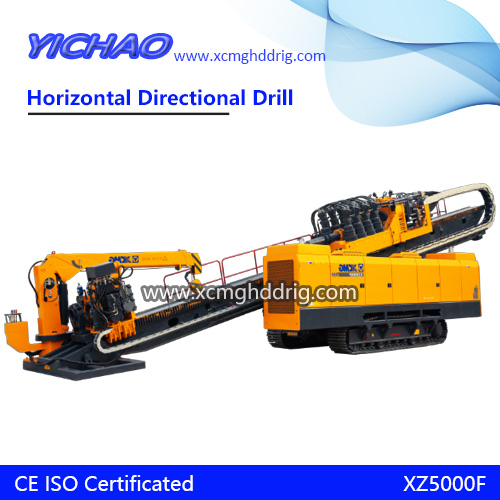

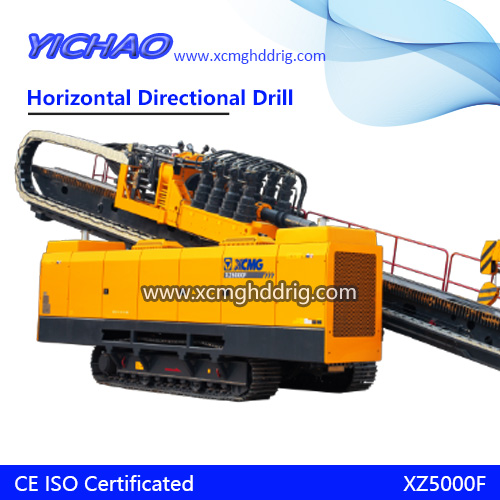

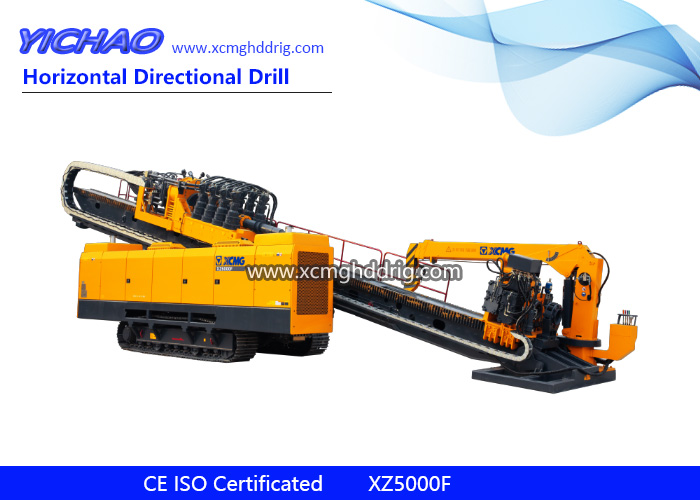

The XZ5000F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company's proprietary technologies, including closed energy-saving circuits, electro-hydraulic proportional control, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. The main components, including the hydraulic system, transmission system, reducer, and electrical control system, are first-class international brand products with high reliability.
The XZ5000F horizontal directional drilling rig is an integrated, fully self-contained design that uses a number of advanced energy-saving control technologies and the company’s proprietary technologies, including closed energy-saving circuits, electro-hydraulic proportional control, and load-sensitive control. Its main performance parameters and control technologies have reached international advanced levels. The main components, including the hydraulic system, transmission system, reducer, and electrical control system, are first-class international brand products with high reliability.
System Intelligence: Intelligent electronically controlled drilling rig, digital display system, distributed electrical system, simple control, easy troubleshooting;
Comfortable Control: Silent cab + multi-function integrated double handle, comfortable reach rate of control device> 95%;
One-button operation: Quick construction, one-button operation, convenient, fast and safe;
Cloud Management: Remote cloud data management system, through the drilling cloud mobile phone APP, real-time observation of construction data, winning thousands of miles;
Energy saving and high efficiency: Multi-power system, any engine can complete all the actions of the drilling rig when started, combined with the proprietary single-engine high-efficiency construction mode, in the case of guiding or small-diameter construction, one engine can work normally, with low fuel consumption and low cost of use.
| Item | Unit | XZ5000F |
| Engine | – | Cummins National IV |
| Rated power | kW/r/min | 2×294/2100 |
| Maximum push and pull force | kN | 5000 |
| Maximum push and pull speed | m/min | 35 |
| Torque | N·m | 160000 |
| Maximum speed | r/min | 90 |
| Maximum flow rate | L/min | External |
| Maximum pressure | MPa | 10 |
| Drill rod | mm×m | φ140/φ168×9.6 |
| Lifting weight | t | 3.2 |
| Lifting torque | t•m | 6.4 |
| Maximum penetration angle | ° | 16 |
| Mass | t | 53 |
| Dimensions | mm | 17500×3200×3650 |
| Remarks | – | Optional: 1. Split operation room; 2. Rotary semi-automatic. |
