1.XCMG XE135D highlights
Advanced XEICS Intelligent Management System for XCMG Excavator;
New cab with comfortable and safe operation;
Low speed high torque high pressure common rail engine, a new power matching mode, improves power utilization and fuel economy;
Maintenance is convenient and fast, and maintenance cycle of engine filter element is prolonged.
Strengthened rotary mechanism, more coordinated action, less impact, longer life.
Applicable scenarios
Widely used in small and medium-sized earthwork projects, municipal construction, highway and bridge construction, digging and building ditches, farmland water conservancy construction and other projects.
2.Main parameter
| ITEMS | UNIT | PARAMETER |
| Operating weight | (Kg) | 13200 |
| Bucket capacity | (m³) | 0.32-0.61 |
| Engine rated power | (kW/rpm) | 86/2200 |
| Bucket digging force | (kN) | 99.1 |
| Max digging depth | (mm) | 5546 |
3. Configuration
| Standard Configuration | XE135D |
| Engine | Cab and Interior |
| Engine Model QSF3.8 | Increase the cab |
| Emission levels: Euro III | Fully adjustable mechanical
suspension seat |
| Automatic preheating | Adjustable Suspension Seat/
Headrest/Handrail |
| Oil-water separator with water
level indicator sensor |
Adjustable seat armrest |
| Radial Sealed Air Filter | Seatbelt (51mm [2″]wide) |
| Construction of High
Temperature Environmental Cooling System at 50 Temperature |
Openable front windshield
with auxiliary device |
| Clean radiator | Front windshield divided
by 70/30 ratio |
| Fuel standard | Double-ply gummed
windshield and other tempered windows |
| Automatic idling | Sliding doors and windows |
| Safety and Security Configuration | Upper windshield wipers and
cleaners mounted on pillars |
| Driving door lock and
compartment lock |
Two-way air conditioning with
defroster (automatic type) (pressure function) |
| Alarm horn | Color LCD Display Displays
Warning Information, Filter/Liquid Replacement Information and Working Hours |
| Rearview mirror | |
| Isolation plate between engine
and oil pump chamber |
Manipulation handle |
| Engine emergency
shutdown switch |
Driving control pedal with
removable manual joystick |
| Rear window emergency exit | Two stereo speakers |
| Battery Circuit Breaker | Beverage cup holder |
| Moving arm and bucket rod
retaining valve |
Cap hook |
| Overheating alarm mode | Openable booking hatch |
| Safety handrails and pedals | Cleanable floor mat |
| Anti-skid board/anti-skid sticker | air conditioning system |
| Hydraulic safety locking rod | High and Low Speed Shift |
| Emergency escape hammer | One-button augmentation mode |
| Left and Right Rearview Mirror | Push-pull front window |
| Hydraulic system | Top skylight |
| Flow regeneration of boom/
bucket rod |
Cab light |
| Auxiliary Hydraulic Valve | Storage box and cap hook |
| Reverse Rotary Damping Valve | Cigarette lighter/standby
power supply |
| Automatic Rotary Parking Brake | Cup rack/file bag |
| Hydraulic Buffer Valve | Warm and Cold Storage Tank |
| Direct Hydraulic Circuit | LCD liquid crystal monitor |
| Boom priority valve | Radio |
| Rotary logic valve | electrical system |
| Hydraulic Oil ISO VG 46 | Battery (2x750CCA) |
| Rotary anti-swing valve | 70A alternator |
| Spare valve disc | 4.8KW Start Motor |
| Chassis system and shield | 12V cigarette lighter |
| Guide wheel and middle
track single rail protector |
5V USB Interface |
| Chassis traction ring | Working device |
| Grease-Lubricated track | Arm 4.6M |
| Protective Device Kit: Chassis Bottom
Seal Plate, Walking Motor Seal Plate |
Bucket pole 2.52M |
| 500 mm (20 degree)
three-ribbed track board |
0.52M3 Reinforcement Bucket |
| Floodlight | technology |
| Left and Right Arm Working Lamp | XEICS Intelligent Control System |
| Right-side working lamp
mounted on storage tank |
Data link SOCKET |
| Cab interior lighting | Counterweight |
| 2.26T | |
| Selective assembly | |
| Oil-water separator with heater (24V) | Fire Extinguisher |
| Oil-water quick release device | Bucket pole 2.1m |
| Coolant heater (fuel type) | Bucket rod 3.01M |
| Fuel Pump 50L/MIN | 0.32-0.61M3 earthwork bucket |
| Rapid Fuel Filling System | Fast Connector |
| Hydraulic Pipeline: Breaking
Hammer and Thumb Clamp |
Breaking hammer |
| Additional oil return filter
and pressure stabilizer |
Explosion-proof valve for boom
and bucket rod pipeline |
| Operational mode switching | Rotating warning lamp |
| Hydraulic Oil ISO VG 32,68 | Rearview Impact System |
| 600MM (24 inch)
three-ribbed track board |
Counterweight rearview mirror |
| 700 MM (28 inch)
three-ribbed track board |
Roll over Protection Structure (ROPS) |
| Extended chassis | Falling Object Protection Structure (FOPS) |
| Track rubber block | Buzzer (according to national requirements) |
| Track double rail protector | Rotary Alarm Light Installed in Cab |
| Bulldozer | Travel alarm |
| Air suspension seat with
cushion heating |
Camera |
| Flexible seat belt (51mm
[2inch] wide) |
12V power interface |
| On-board oxygen supply device | Cab mounted working lights |
4.Detailed parameter
| Main parameter | ||
| Model | Unit | Digital |
| Operating Weight | kg | 13200 |
| Bucket capacity | M3 | 0.32-0.61 |
| Engine | / | |
| Engine Model | / | QSF3.8 |
| EFI | / | √ |
| 4-stroke | / | √ |
| water-cooling | / | √ |
| Turbo | / | √ |
| Air-to-air cooling | / | √ |
| Cylinder number | / | 4 |
| Engine rated power | kw/rpm | 86/2200 |
| Maximum Torque/Speed | N.m/rpm | 470/1300 |
| displacement | L | 3.8 |
| main performance | ||
| Walking speed | km/h | 5.2/2.9 |
| Rotary speed | r/min | 11 |
| Climbing ability | ° | 35 |
| Grounding specific voltage | kPa | 40.4 |
| Bucket digging force | kN | 99.1 |
| Bucket bar excavation force | kN | 68 |
| Maximum traction | kN | 134 |
| Hydraulic system | ||
| Main pump | / | / |
| Rated flow rate of main pump | L/min | 125.4*2 |
| Main Safety Valve Pressure | MPa | 21.4 |
| Walking system pressure | MPa | 34.4 |
| Rotary system pressure | MPa | 123 |
| Pilot system pressure | MPa | 3.9 |
| Oil capacity | ||
| Fuel tank volume | L | 260 |
| Volume of Hydraulic Fuel Tank | L | 105 |
| Engine oil capacity | L | 11 |
| Shape size | ||
| Chief A | mm | 7795 |
| B total width | mm | 2525 |
| C total height | mm | 2880 |
| D turntable width | mm | 2490 |
| E Track Length | mm | 3648 |
| F Chassis Total Width | mm | 2490 |
| G Track Bandwidth | mm | 500 |
| H crawler wheelbase | mm | 2918 |
| I gauge | mm | 1990 |
| J counterweight ground clearance | mm | 931 |
| K minimum ground clearance | mm | 466 |
| L tail minimum radius of rotation | mm | 2325 |
| M Track Height | mm | 802 |
| Scope of work | ||
| A Maximum Excavation Height | mm | 8638 |
| B Maximum unloading height | mm | 6174 |
| C Maximum Mining Depth | mm | 5546 |
| D 8-foot horizontal excavation depth | mm | 5335 |
| E Maximum Vertical Mining Depth | mm | 4698 |
| F maximum excavation radius | mm | 8304 |
| G Minimum Rotation Radius | mm | 2445 |
| Standard | ||
| Arm length | mm | 4600 |
| Bucket rod length | mm | 2520 |
| Bucket capacity | M3 | 0.52 |
5.More features

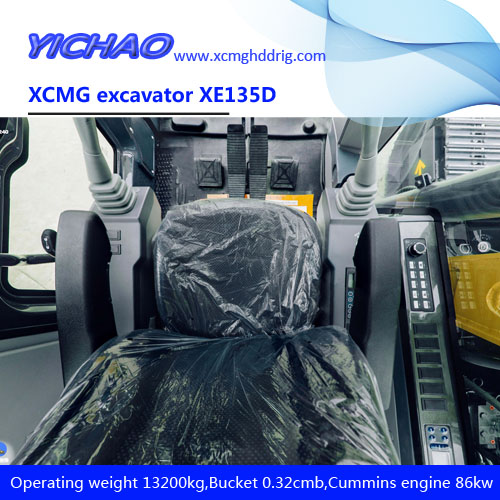

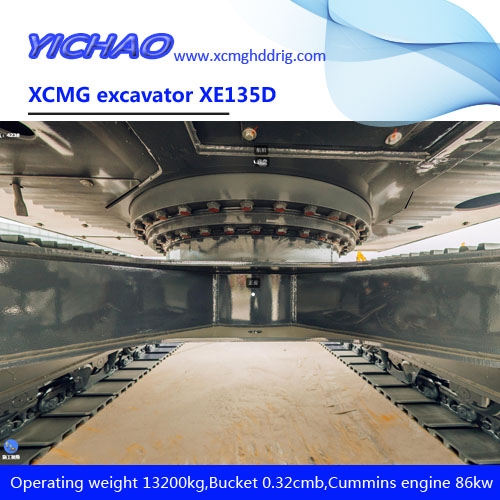

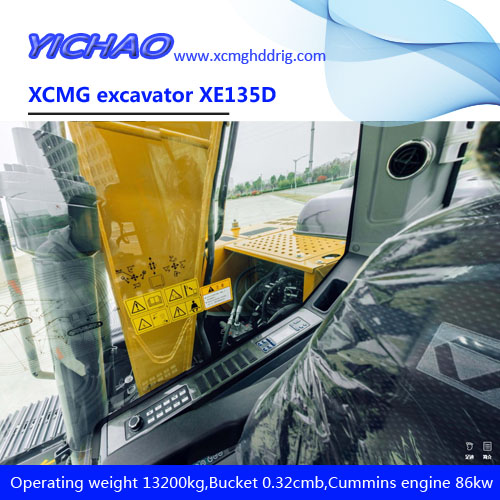

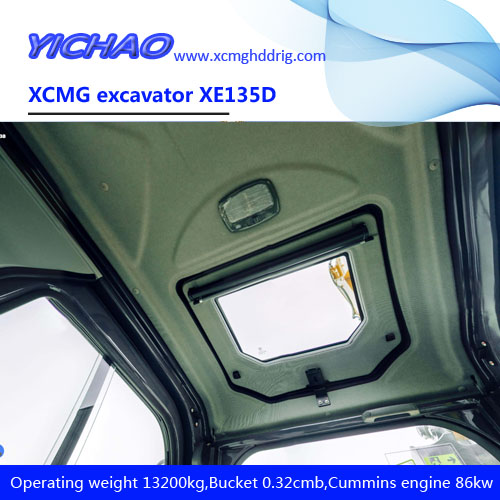

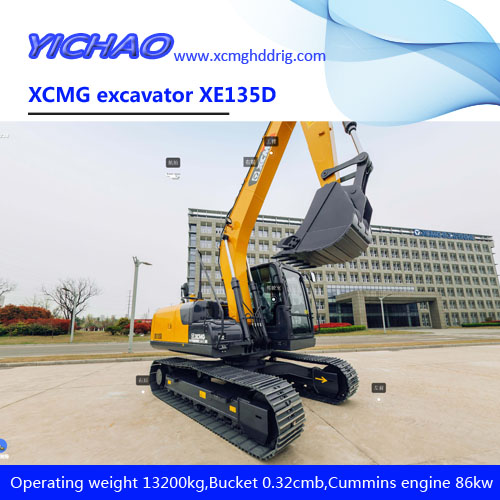

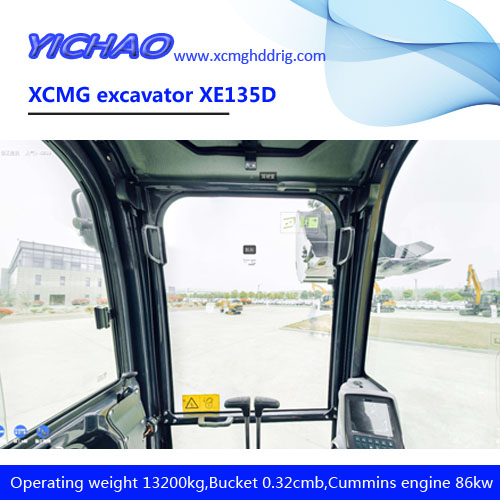

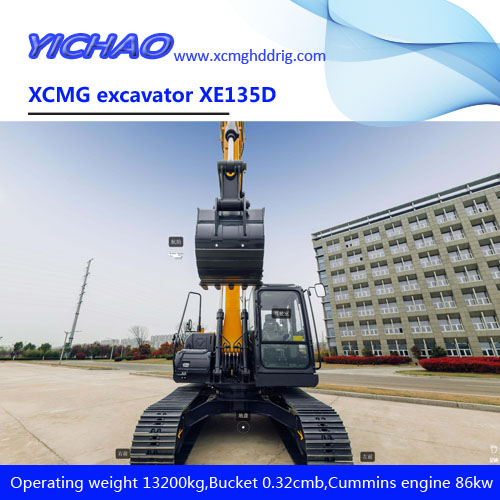

6 More photos
