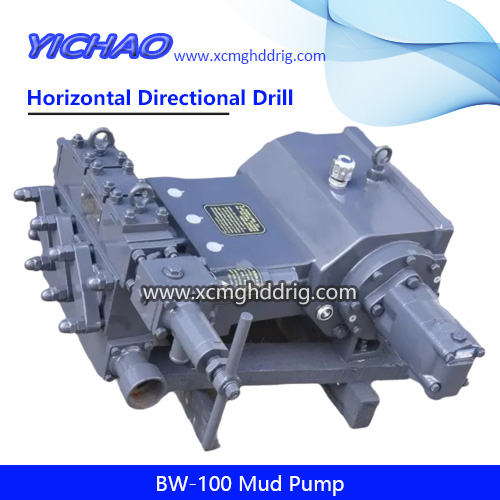

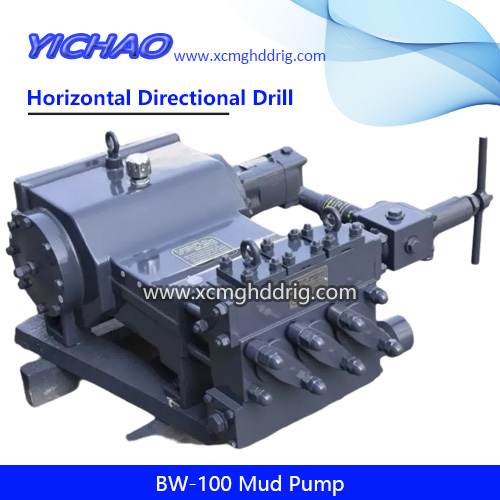

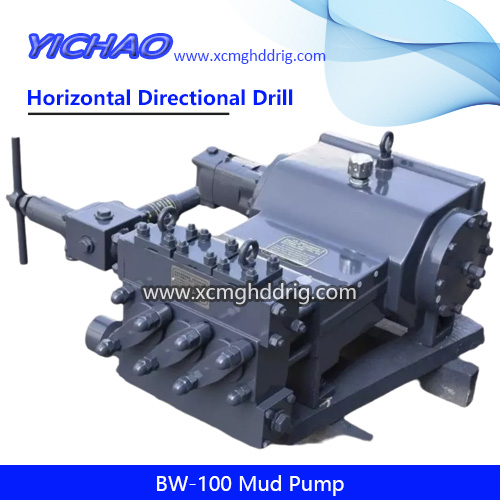

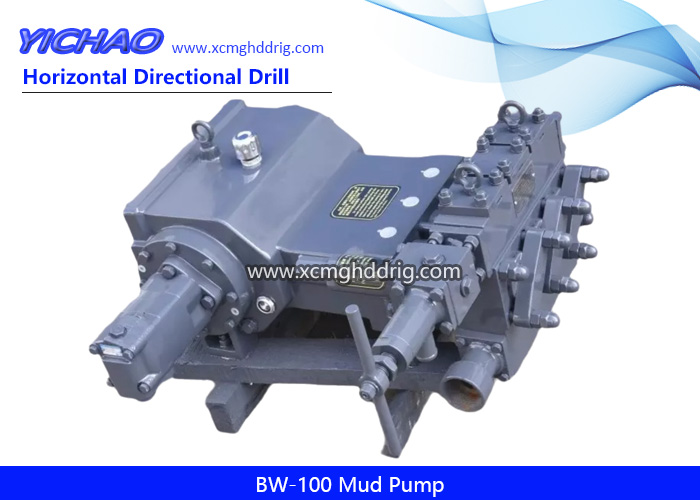

BW-100 hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston pump.
It is applied to geological and engineering prospecting such as the railway, the water conservancy, the metallurgy,the build, geology industry and so on, which hole depth is within 1000m.
The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber parts, meanwhile, the temperature can not exceed 50℃.
Regarding the mud, the recommended specific gravity is 1.03~1.12; viscosity is 18~25S; sand content is not over 4%; the max sand diameter is no bigger than 2mm, and PH value is 7~8. Meanwhile, the mud can not contain mud pies, weeds, leaves etc.
Model
BW-100
Type
Hydraulic Mud Pump
Stroke
60
Cylinder Diameter
55
Flow
100 L/min
Pressure
7 Mpa
Technical Parameters
Type
Horizontal Triplex Reciprocating Single Acting Piston / Plunger Mud Pump
