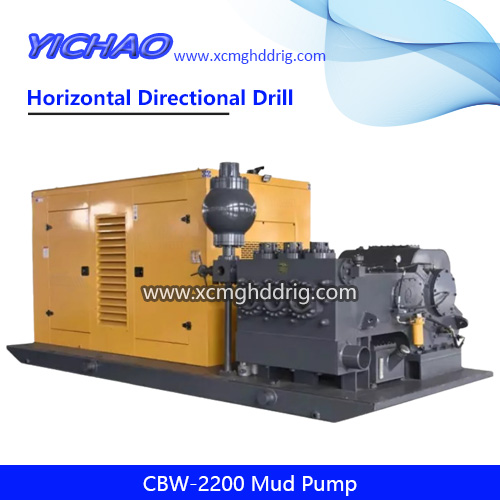

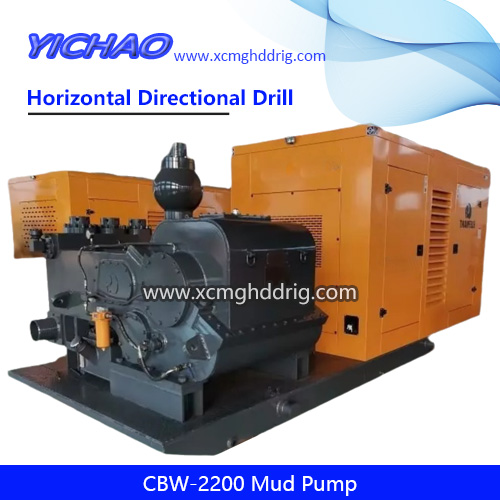

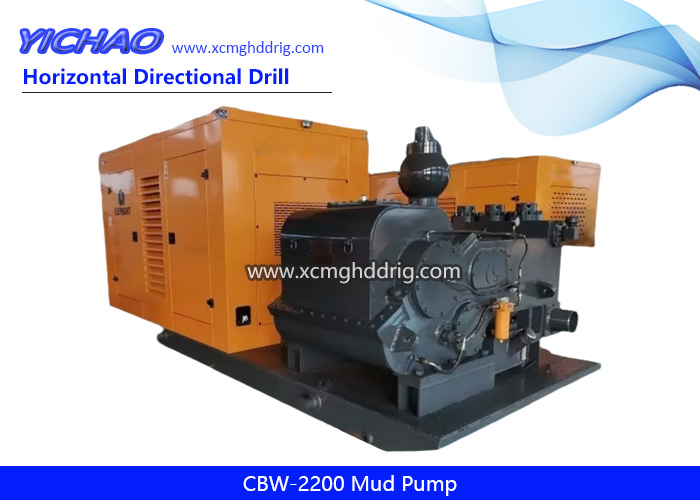

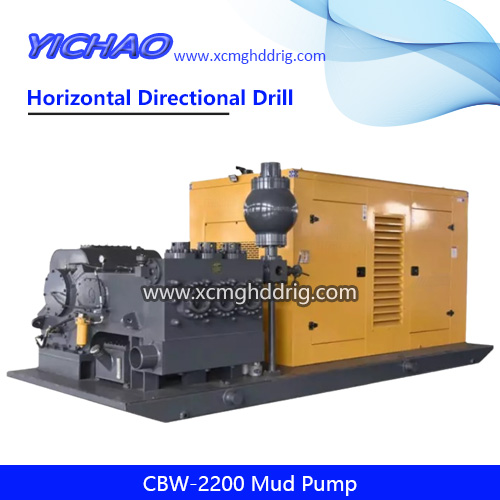

CBW-2200 horizontal drilling mud pump is a reciprocating single-acting plunger pump, driven by diesel engine, equipped with automatic shift gearbox, wireless remote control. It has six kinds of flow and pressure.
This mud pump can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.
| Model | CBW-2200 |
| Type | Diesel Engine Mud Pump |
| Stroke | 200 |
| Cylinder Diameter | 140 |
| Flow | 500-2200 L/min |
| Pressure | 5-20 Mpa |
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
| Type | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) | 200 |
| Cyclinder Diameter (mm) | 140 |
| Flow (L/min) | 2200 1700 1200 900 650 500 |
| Pressure (Mpa) | 5 6.5 9 12 17 20 |
| Input Speed (r/min) | 220 |
| Dimensions (mm) | 5310*2300*2480 |
| Weight (kg) | 12500 |
| Diesel Model | YC6MK420-T30 |
| Diesel Engine Power (KW) | 281 |
| Rated Speed (r/min) | 1800 |
