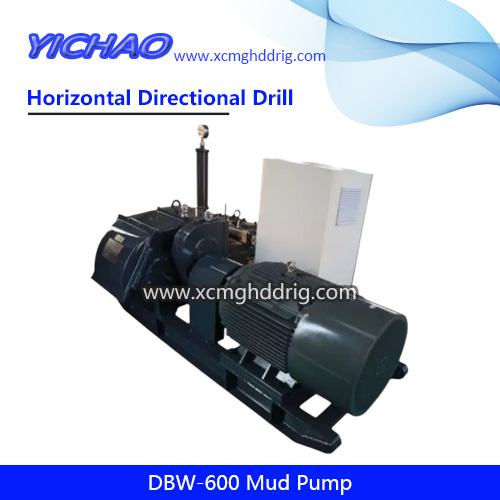

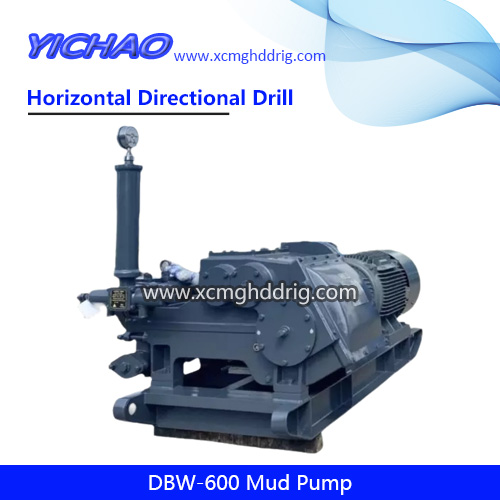

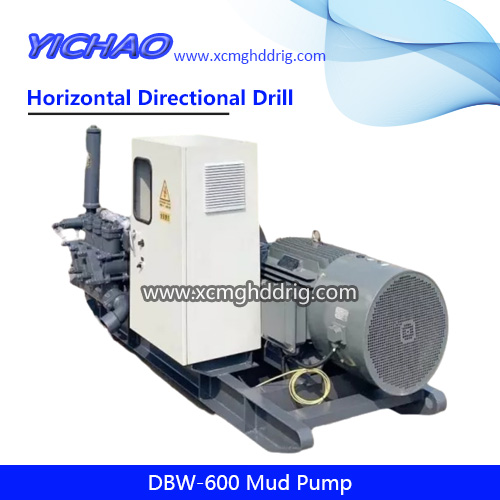

DBW-600 Mud pump for core drilling is a kind of horizontal triplex reciprocating single acting piston pump, using varible frequency electric motor driven, transmission by coupling reducer. It is mainly used for conveying flushing fluid to borehole in geological core drilling. It can also be used for other purposes, such as grouting, drainage and long-distance water delivery. The pump has four kinds of flow and four kinds of pressure, all gears can be stepless regulated by frequency converter.
The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.
Model
DBW-600
Type
Electric Motor Mud Pump
Stroke
110
Cylinder Diameter
100
Flow
195-600 L/min
Pressure
3.5-10 Mpa
Technical Parameters
Type
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump
