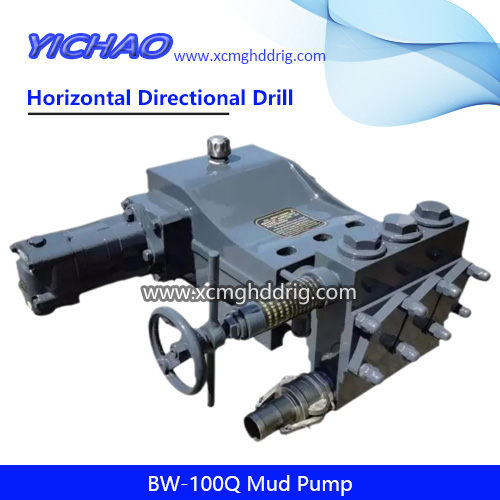

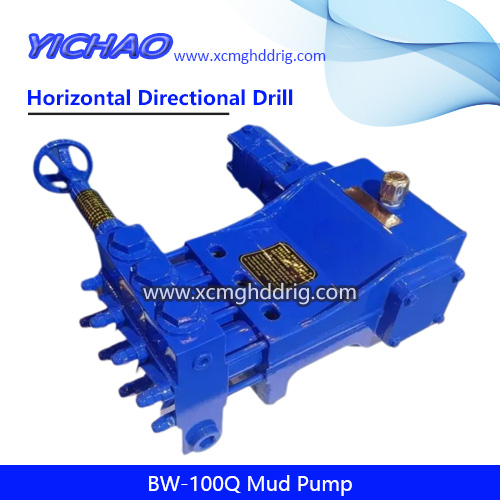

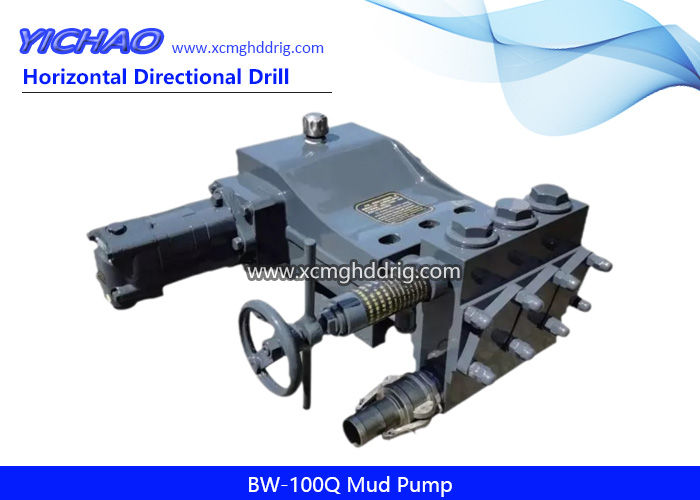

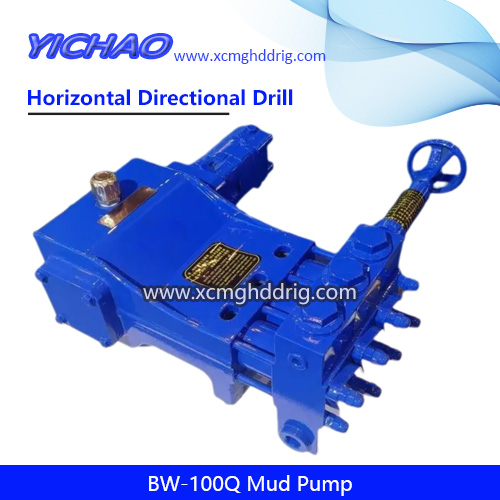

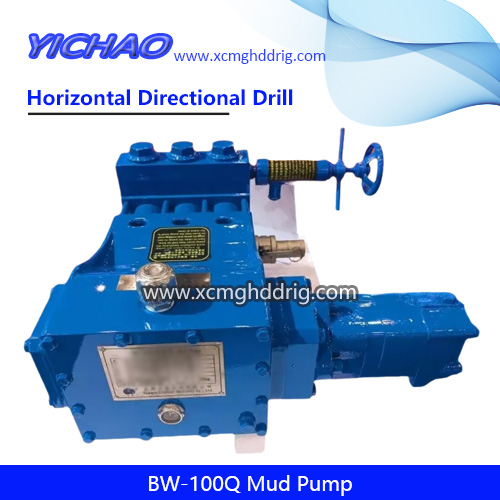

BW-100Q hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston pump.
| Model |
BW-100Q |
| Type |
Hydraulic Mud Pump |
| Stroke |
48 |
| Cylinder Diameter |
55 |
| Flow |
100 L/min |
| Pressure |
7 Mpa |
Technical Parameters
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
48 |
| Cyclinder Diameter (mm) |
55 |
| Flow ( L/min) |
100 |
| Pressure (Mpa) |
7 |
| Input Speed (r/min) |
295 |
| Input Power (KW) |
13 |
| Dimensions (mm) |
545*532*278 |
| Weight (kg) |
90 |
| Hydraulic Motor Model |
2K604-0045 |
| Hydraulic Motor Pressure (Mpa) |
18 |
| Maximum Motor Flow (L/min) |
58 |
