  • XCMG XZ430E HDD Horizontal Directional Drilling Machine

    • Description

    XZ430E Horizontal Directional Drill Technical Specification
    Product Model:XZ430E Horizontal Directional Drill(HDD)
    Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd.
    XCMG XZ430E HDD horizontal directional drilling machine is the new products which set advanced technology, user experience, efficiency of construction as a whole, and pay moreattention to construction requirements, operation habit, system energy saving, and could be widely used in urban pipeline construction such as electric power , communication, cable TV and so on .

    I.Features Introduction

    1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
    2.Gear rack thrust/pull design insures operation. Floating carriage can protect the screw thread of the rods.
    3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
    4.The whole machine adopts protection technology such as proportional wire-controlled walking, seat switch, logic interlock, electrical shock protection and , short time Plus 20% force, meet the CE safety certification requirements.
    5.Sliding, rotating system multiple output, modular common rail fuel system and electronic control module, system energy saving, high efficiency of construction, efficiency increased by 15%.
    6.Support the diverse needs of customers, the machine can be increased with cab, air conditioner, cold start, mud antifreeze, automatic loading rod, electrical shock protection automatic thread oil daub etc, reduce the working strength, improve the construction efficiency.

    II.Technology Introduction

    1.Engine System

    Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet China III emission standard.
    Engine Type                              QSC8.3-C240
    Rated Power                                179kW
    Rated Speed                                2200 r/min
    Max Torque                          1040 N·m /(1350r/min)
    Emission Standard                       ChinaIII
    Optional Dongfeng Cummins turbocharged engine, strong power, emissions meet China II emission standard.
    Engine Type                              6CTAA8.3-C240
    Rated Power                                179kW
    Rated Speed                                 2200 r/min
    Max Torque                           1040 N·m /(1400r/min)
    Emission Standards                       ChinaII
    Optional SDEC turbocharged engine, strong power, emissions meet China III emission standard.
    Engine Type                          SC9DK240G3
    Rated Power                            177kW
    Rated Speed                            2200 r/min
    Max Torque                      1040 N·(1200~1600r/min)
    Emission Standard                    China III

    2.Power head

    XCMG XZ430E HDD horizontal directional drilling machine completed by rack and pinion sliding action, floating carriage device can effectively protect the drill thread, variable-speed motor to achieve sliding, the service life of the drill pipe 30% increase; piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
    Max. Thrust/Pullback force                    430/520 kN
    Max. Thrusting /pulling speed                48 m/min
    Max Rotation torque                        18500 N·m
    Max. Rotation speed                        170 r/min

    3.Hydraulic System

    Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability. Three pumps coordinated action to complete the working, a reasonable allocation of engine power.

    4.Chassis

    XCMG XZ430E HDD horizontal directional drilling machine uses classic H-beam structure, high quality rubber track, site adaptability, high reliability, breaststroke leg structure, large cylinder support, good stability, Eaton traveling device, stable performance, walking speed can reach 2.6km /h.
    Track outer distance                       2240 mm
    Rubber track width                       400 mm
    Tread                                                2140mm
    Supporting wheels quantity             2×7pcs
    Gradeability                                    30%
    Walking speed                               2.6km/h
    Ground pressure                            64kPa

    5.Mud Systerm

    450L mud pump with a large flow, can meet most of the construction needs, winter construction can be increased with antifreeze systems with mud and mud cleaning system for the whole routine maintenance.
    Mud maximum flow                  450L/min
    Mud maximum pressure               80bar

    6.Cab(Optional) and Console

    Can be increased with the cab, air conditioner, reduce labor intensity, improve the efficiency of the operator, collaboration with professional bodies, cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable.

    7.Rods Loader(Optional)

    Semi-automatic pipeloader
    XCMG XZ430E HDD horizontal directional drilling machine can option configuration with the semi-automatic pipeloader, used motor rotating structure to achieve handling drill semi-automatization.

    8.Drilling rods and Drilling Tools(Optional)

    XCMG XZ430E HDD horizontal directional drilling machine with Drill and Drilling Tools have good performance and stable quality to make sure construction successfully. Other accessories of XZ430E HDD are configured as follows:

    Name .Type .Form .Specification .Remarks
    Drilling rods Integral/Welded ¢83mm×9mm×3m
    Drilling Tools Back Reamer Expanding style ¢300mm
    ¢400mm
    ¢500mm
    ¢600mm
    ¢700mm
    ¢800mm
    ¢900mm
    Back Reamer Fluted type ¢300mm
    ¢400mm
    ¢500mm
    ¢600mm
    ¢700mm
    ¢800mm
    ¢900mm
    Accessories Pilot drilling 83
    Starting Rods 83
    Guiding plate 83
    Torque sleeve 83
    L-nut 83
    Male puller 83
    Female puller 83
    Swivel 50t
    Short connection 83
    Mud system Mud Mixing System 2cbm
    3cbm
    Instrument Guide Instrument Navigator E/ET XCMG
    Detector 8100 Radiodetection

    III.Main Technical Parameters

     Item Unite Parameter
    Engine Manufacturers / Dongfeng Cummins SDEC
    Model / 6CTAA8.3-C240 QSC8.3-C240 SC9DK240G3
    Rated Power kW/r/min 179 /2200 179 /2200 177 /2200
    Thrust/Pullback Type / Piston Motor+ Reduction Box
    Max Thrust/Pullback force kN 430/520
    Max Thrust/Pullback speed m/min 48
    Rotation Type / Piston Motor+ Reduction Box
    Max Rotation torque N·m 18500
    Max. Rotation speed r/min 170
    Drilling rods D × L mm×mm φ83×3000
    Mud pump Max Flow rate L/min 450
    Max Pressure MPa 8
    Weight kg 12000

    IV.Main Part Configuration

    Name Manufacture factory
    Engine Dongfeng Cummins/SDEC
    Rotation Pump Danfoss
    Thrust-Pull Pump Danfoss
    Auxiliary Pump Permco
    Rotary Motor Liyuan
    Thrust-Pull Motor Liyuan/Huade
    Reduction Box XCMG
    Hydraulic tubo XCMG
    Hydraulic oil cylinder XCMG
    Hand Shank  XCMG
    Walking speed reducer XCMG/Eaton

    V.Transport Program

    XZ430E horizontal directional drilling machine

    XZ430E horizontal directional drilling machine

    XZ430E horizontal directional drilling machine

    XZ430E horizontal directional drilling machine

    The machine transportation Dimension           6500×2250×2450mm
    Shipping weight(standard no cabin,without  Drilling rods and Drilling Tools)                      12t
    Shiping weight( Cab,Pipe Loader,without Drilling rods and Drilling Tools)     13.2t

    VI.Accompanied Attached Documents

    XZ430E HDD machine start when accompanied by the packing list, include the following technical documents:
    Product Certificate
    Product Manual
    Engine Specification
    Engine Warranty
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)

    VII.Attached Equipment

    Items Optional XZ430E Optional
    Engine Engine ChinaⅢQSC8.3-C240 /
    Engine China II 6CTAA8.3-C240 /
    Engine China Ⅲ SC9DK240G3 /
    Cold start /
    Mud system 450L Mud pump /
    Mud antifreeze /
    Mud cleaning /
    Pipe Loader Semi-automatic pipeloader /
    Full-automatic pipeloader / /
    Cab Simple machine tent /
    Cab and air conditioner /
    Walking Proportional wire-controlled walking, /
    Instantaneous power Short time Plus 20% force /
    Electric shock alarm Electrical shock protection /
    Automatic application of thread oil Automatic thread oil daub /

    √-Normal   □-Optional  /-No-assembledMG XZ

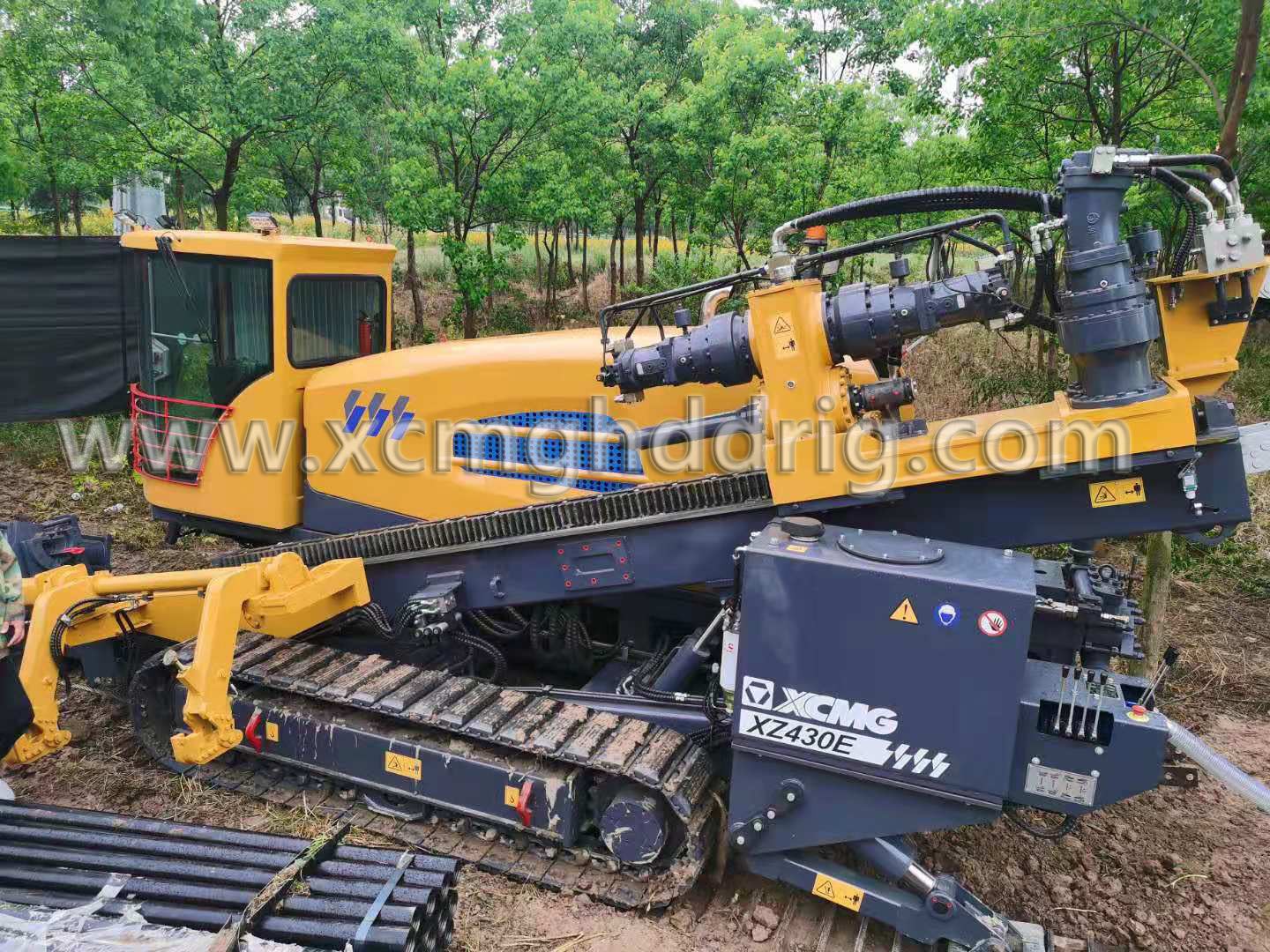

    xz430e horizontal directional drilling rig

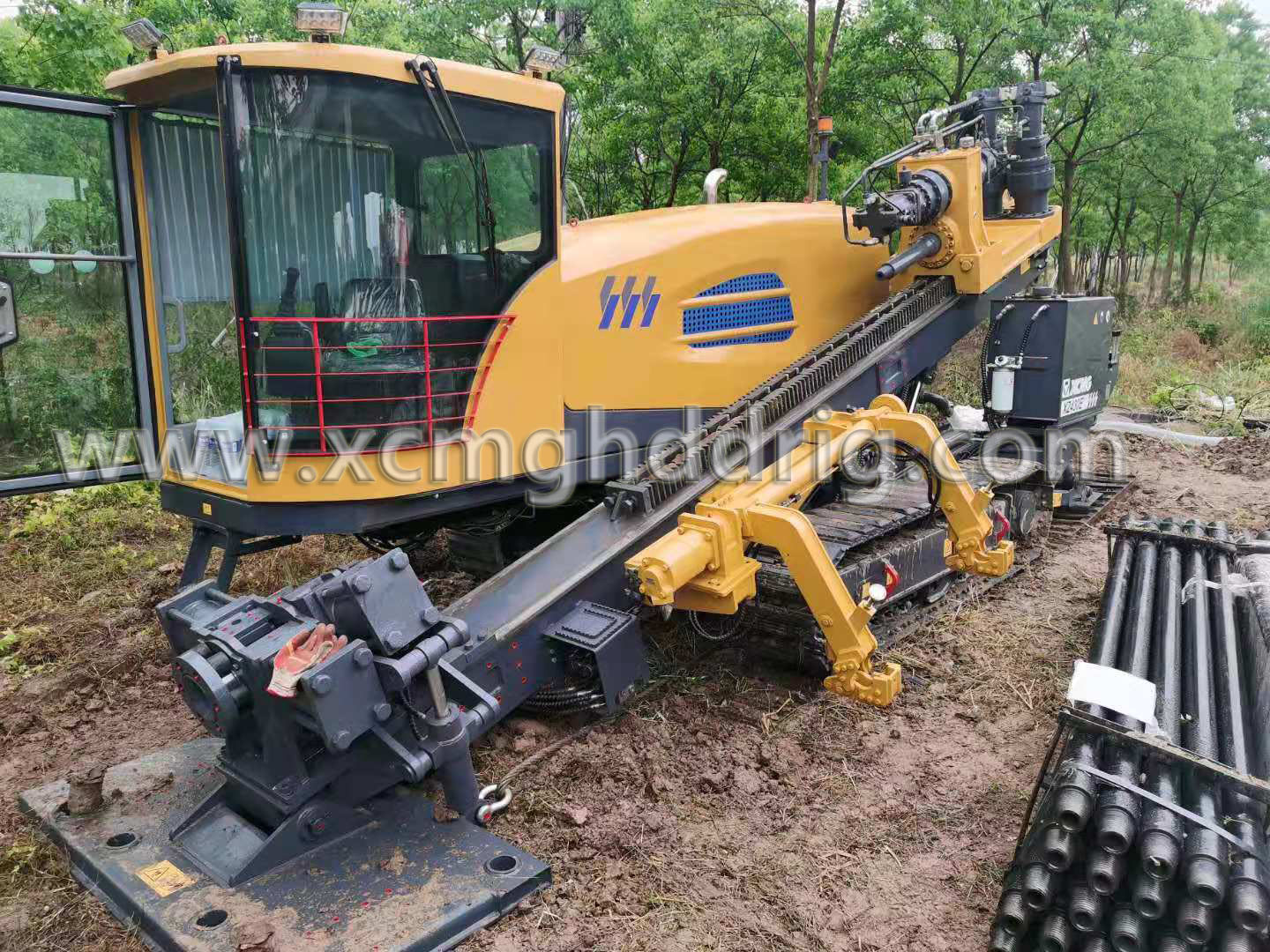

    xz430e horizontal directional drill
